Fire tube (Import from Germany)

Standard :
EN 12953 / ASME section I
Steam capacity :
1 – 30 ton/hr
Steam pressure :
6 – 20 barg
Boiler efficiency :
Up to 90% (with economizer)
Feed Water Temperature :
104 °C
Safety & Control :
acc. to EN12953/ TRD / Thai regulation
Automatic operation by PLC & SCADA
Steam boiler type Three-pass, wet back for optimal combustion and minimum energy loss
Save energy and operation cost
Easy Maintenance
The flame tube is arranged centrally, offset slightly downwards. The hot gas flues of the second and the third pass are arranged symmetrically above. The high pressure steam boiler generates 1 to 30 ton/hr. The operating pressure extends from 6 to 20 barg (28 barg, 30 barg on request). With the associated system technology, the boiler utilizes fuel particularly efficiently.
Effect on Environmental Operation of the three-pass boiler is environmentally responsible with clean combustion throughout the entire output range. A constant temperature where the flame is created supports stable flame formation and reduces NOx emissions.

Water tube

Standard :
ASME section I
Steam capacity :
10 – 35 ton/hr
Steam pressure :
10 – 25 barg
Boiler efficiency :
Up to 92% (with economizer)
Feed Water Temperature :
104 °C
Safety & Control :
acc. to ASME
Automatic operation by PLC & SCADA
D - type chamber by optimal combustion and minimum energy loss
Save energy and operation cost
Easy Maintenance
Steam boiler is designed with longitudinal double drums and "D" type chamber structure. The body is fixed on the basement by middle and both end flexible supports and make the boiler expand horizontally sideways. Around the furnace is membrane water cooling tube wall. Furnace and tube bank are totally separated by the membrane water tube cooling wall at the left side of the furnace. The back part of bundle is sparse shift structure, front part is aligned structure.
Smoke from furnace outlet enters re-burning chamber, convection tube bank area and then from left front part enters spiral fine coil economizer and finally is discharged to atmosphere through chimney.
Technical advantages:
• Safety
Boiler body uses the forced circulation in the high temperature area to make sure all heating areas can be cooled down and avoid vaporization;
The explosion door and flame detector are equipped for safe and reliable operation.
Comb plates are used between both sides of boiler and tube bundle to avoid leakage of condensate and gas caused by using refractory concrete as sealing material. Air proof test is done before delivery in the factory to guarantee any gas leakage problem.
• Convenience
Manholes are placed on the front and back side of drums and inspection doors on back side of boiler easy to open for inspection and clean inner and outer parts.

THERMAL OIL BOILER (hot oil boiler)

Standard :
DIN 4754 / EN 10216-2 / EN 10217-2
Supply temperature :
max 320 °C
Capacity :
500,000 - 10,000,000 kcal/hr
Efficiency Combustion :
Up to 88%
Operation nearly pressure less
Minimal heat loss because of high-effective insulation
Profitable installation costs (Low pressure system)
No Corrosion
Exactly controlling
Automatic operation by a sequential controlled program system
CIRCOTHERM-CONSTRUCTION
Heating surface: Radiate and convection heating surfaces consists of precise manufactured cylindrical tube bundles, connected together to a reversing chamber, which is total cooled by thermal oil.
Burning chamber: The cylindrical burning chamber is constructed according the flame geometry. This guaranties an optimal combustion and a low load of the load of the burning chamber.
Flue gas direction: In the well tested three-pass-principle the flue gas flows from burning chamber to the space between radiate and convection tube bundle, then through the convection-pass between the outside tube bundle and the boiler cover to the chimney.
Insulation: For heat insulation the boiler is covered around by special stone wool mats. Total 150mm seam displaced fixed in two layers guaranties optimal against heat loos. The top layer is made of aluminium sheet.
ADVANTAGES
Operation nearly pressureless, safety in operation, profitable installation costs (low pressure system), No corrosion, exactly controlling, frost-resistant(up to -30 degree C), without water treatment (Thermo oil can be used for years), possibility of indirect hot water and steam generation (see our separate catalogue).
APPLICATION
Construction material industry, Tar manufacturing industry, Chemical industry, Wood-paper-pasteboard industry, Plastic industry, Metal-processing industry, Food industry, Soap and detergent industry, Textile industry

Hot water boiler

Standard :
DIN 4702/EN 303 with oil or gas burner
Supply temperature :
50 °C minimum return temperature
Capacity :
900 to 5,200 kW
Efficiency :
Up to 93% for best possible, energy operation
The exhaust gas flues to minimize NOx emissions
High water volume for good temperature stratification
Heating surfaces of plain tube to avoid stain and to maintain constant power
Adequate thermal insulation, including the front door, to minimize radiation losses ant

Rotary cup

Standard :
DIN 51603 / DWGW Regulation
Design :
Rotary cup, as oil & gas combination
Burner capacity :
232 - 46,515 kW
Operation :
Modulating, Fully automatic
Bio gas composition :
CH4 min. 55% - 65%
H2S max. 0.15%
Gas supply pressure at entry to main gas valve of gas train :
min.: 250 mbar
max.: 400 mbar
Automatic operation by a program controlled system

Suitable for alternative firing of mineral fuel oil according to DIN 51603 as well of gas with characteristics as listed.

“RAY” oil & gas combination burners of the BGEC series are industrial duo-block burners. They combine the oil and gas burner. They are modular, based on the building block principle and consist of the burner, an air reservoir, the separately installed blower and the fuel feed line and control.

The series is suitable for parallel or separate combustion of all technical fuel gases as well as gas and all mineral heating oils and combustible liquid waste materials. The control unit used as standard ensures that oil/gas is used sparingly and makes it easier to operate and maintain the burner. All essential functions such as fuel and air supply or flame monitoring are controlled with precision. Due to the modular burner structure and the resulting flexibility, they can be used for a large number of special applications. Individual project planning, a short planning phase and high system availability are guaranteed. The use of the RAY oil/gas combination burner allows a free choice of fuel for economic or operational reasons.

ADVANTAGES
  • Burners for combined operation of oil and gas for alternative or combination firing
  • Use for liquid fuel and any kind of gas
  • Change-over and fuel selection automatically, also by remote control
  • High turn-down ratio resists fire back pressure highest economy
  • High turn-down ratio resists fire
  • Design and manufacture of burner systems for separate or simultaneous firing of all liquid or gaseous fuels.
  • Quality and reliability
  • Burner and gas train are approved according to the German DVGW-regulations.

Pressure atomizer

Standard :
Oil burner type approval to EN 267
Gas burner type approval to EN 676
Design :
Pressure atomizer
Capacities :
500-11,700 kW
Fuel :
Heavy fuel oil/ Diesel oil/ LPG/ LNG/ NG/ BIO GAS
Operation :
Fully automatic sliding two stage or modulating depending on rating regulation.
Complete with combustion manager, Display and operating unit with single line digital display.
Monobloc burner construction can be hinged open to the left or right.
Integrated intake sound absorber for noise emission reduction in the boiler room.

Burner in Monoblock construction, can be hinged open to the left or the right, type of protection IP54, type tested, approval to EN676.

“WEISHAUPT” produces gas and oil-fired boilers, heat pumps, and burners. These top-quality products are characterized by their meticulous development, high-quality workmanship, outstanding operational reliability, and maximum Efficiency. Their unrivalled excellence extends equally to design and function.

Weishaupt WM-series oil, gas, and dual-fuel burners are equipped as standard with electronic compound regulation and digital combustion management. Modern combustion technologies demand a precise and continually reproducible dosing of fuel and combustion air. This is the only way optimal combustion figures can be ensured over extended periods.

AIR HEATER BATTERY (FOOD GRADE)

Self-contained unit, ready for operation. Heating surfaces and headers made of stainless steel tubes, ribs of aluminium. The heat exchanger has been subjected to a pressure test at 21 bar. All materials exposed to high temperatures are of special heat resisting quality.

Standard :
EN/ ASME
Construction :
Series/ parallel
Capacity range :
500,000 – 6,000,000 kcal/h

NOTE : MATERIAL SELECTION FOR AIR HEATERS (FOOD GRADE)
         ABSTRACT FROM THE EUROPEAN REGULATION (EC) NO 1935/2004

SAFETY / CONTROL & PLC & SCADA

  • The system can process digital and analog signals and allows you to establish alarm and switching limits for them.
  • These signals can be assigned directly to the control units or processed further by using the functions Logic and Calculations.
  • After that the signals are outputted via a digital or analog output (IPO model).
  • All inputs and outputs can be linked, parameters set, actual values viewed and trend data allocated via touchscreen
PLC Interface overview
PLC–SYSTEM FOR SMART CONTROL
SCADA

INDUSTRIAL FAN (HIGH EFF.)

Biogas

Construction

Tank farm
Steam boiler (water tube)

Economizers

Economizers and air heaters perform a key function in providing high overall thermal efficiency of the boiler by recovering the low level, that is, low temperature heat from the flue gas before it is exhausted to the atmosphere. For every 20 °C that the flue gas is cooled by the economizer or air heater, the overall boiler efficiency increases by approximately 1%. The economizers recover the energy by heating the boiler feed water while the air heaters preheat the combustion air. Coal combustion is enhanced and coal ignition becomes stable when the air is heated before being introduced into the furnace. Economizers and air heaters require a greater heat transfer surface per unit of heat recovered than water-cooled walls, super heaters and repeaters; this is mainly due to the relatively small temperature difference between the flue gas and the feed water or the combustion air. Both the economizer and the air heater are positioned near the end of the convection pass.

Air paeheater

Air Preheater is an important Boiler auxiliary which primarily preheats the combustion air for rapid and efficient combustion in the furnace. The air heater recovers the waste heat from the outgoing flue gas of a Boiler and transfers the same to the combustion air. In a utility Boiler the flue gas leaves the economizer at a temperature of around 350°C. As every 55°C drop in flue gas temperature improves the Boiler efficiency by about 2.5%, having an air heater in the downstream of economizer the Boiler efficiency is considerably improved. Further the air heater may also be used for heating the air to dry the coal in the pulverizing plant.

HRSG (Heat recovery steam generator)

PRESSURE VESSEL & HEAT EXCHANGER

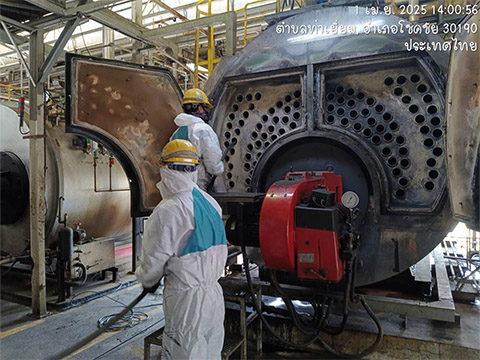

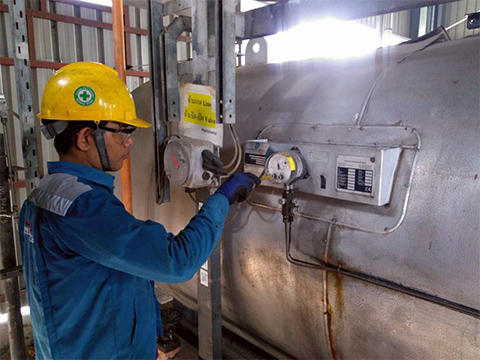

Annual inspection and safety certification

Annual inspection to issue safety certification for steam & hot oil boiler under Thai laws and regulation for:

  • Department of Industrial Works
  • Department of Labor Protection and Welfare

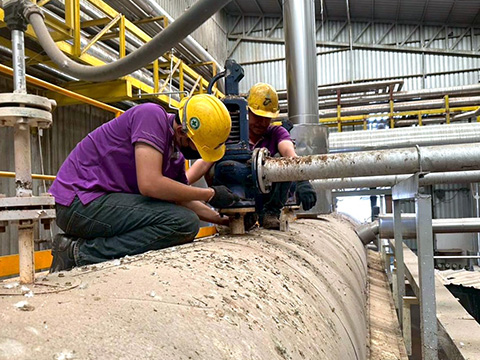

Preventive Maintenance

Preventive Maintaining of steam & hot oil boilers regularly under condition:

  • Good condition ready to continually.
  • Quality service team with expert technicians.

Spare parts

  • Supply genuine parts for the replacement of steam & hot oil boiler including all parts for boilers’ accessories.
  • Advice for selecting right spare parts that is suitable for operation.
  • Advice factor that should be considered before order.

Boiler room (Steam boiler)

1. EQUIPMENT / SAFETY & CONTROL
• Description
The steam boiler control system includes an additional monitoring electrode for supervision of water level. This type-tested electronic system allows automatic operation without steady supervision according TRD standard (𝑇𝑒𝑐ℎ𝑛𝑖𝑠𝑐ℎ𝑒 𝑅𝑒𝑔𝑒𝑙𝑛 𝑓𝑢 ̈𝑟 𝐷𝑎𝑚𝑝𝑓𝑘𝑒𝑠𝑠𝑒𝑙) or according to Thai regulation
2. FEED WATER PUMP STATION UNIT
• Description
Pump module for pumping boiler feed water. All components included in the standard delivery are perfectly matched ready to connect and pre-assembled on a space saving mounting bracket. Feed water pump can be used in liquid temperature range: -20 oC up to 120 oC
3. FEED WATER TANK & DEAERATOR UNIT
• Description
Feed water tanks are heated storage tanks that do not have aspecific de-aerating section and operate at atmospheric pressure. In addition to being a feed water reservoir, these tanks also act as condensate receivers, cold-water makeup locations and as a point for chemical injection. Given the multitude of functions this vessel can have, proper design and operation of the feed water tank is critical to ensure the boiler sees fully treated feed water consistently. A properly designed feed water tank will help reduce thermal shock and decrease oxygen scavenger usage. Avoiding the four most common design issues with feed water tanks can help reduce problems with your boiler feed water system.
4. STACK UNIT
• Description
While rain guards are often necessary in our climate to protect certain equipment from a in entering a stack, there are acceptable and unacceptable design. Rain caps installed on stacks must allow for unobstructed, vertical flow of the exhaust.
5. STEAM HEADER UNIT IN BOILER ROOM
• Description
The steam header, water distributor and water collector are the main auxiliary equipment of the boiler. They are used to distribute the steam or hot water generated during the operation of the boiler to various pipelines. The steam header, water distributor and water collector are a pressure-bearing equipment, which belongs to pressure vessel. Its pressure-bearing capacity and capacity should correspond to the supporting boiler. The main pressure components of the steam header, water distributor and water are: head, shell material, etc. The steam header can be used in various steam boilers. Water distributor and water collector can be used in all kinds of hot water boilers. Steam header is a steam tank for use in the process and steam to warm water in the feed tank.
6. BLOW DOWN UNIT
• Description
The periodic/continuous blow down expansion container is connected with the periodic/continuous. blow down outlet of the boiler. It is used to decompress and expand the periodic/continuous blow down of the boiler, so that the blow down water in the periodic/continuous blow down container can be separated into secondary steam and waste hot water. The waste hot water is discharged after expansion, pressure reduction and heat exchange in the expanded container, and the secondary steam is drawn out by a special pipe. Periodic/Continuous sewage discharge can be adjusted automatically with the change of boiler feed water load to maintain a relatively stable sewage discharge rate. The blow down tank is designed to accept all for steam boiler.

Boiler room (Thermal oil boiler)

1. EQUIPMENT SAFETY & CONTROL
• HIGH THERMAL OIL TEMPERATURE CUT OFF ALARM
  •   - It is temperature cut off switch which is used to safeguard the physical properties of the thermal oil and prevent the thermal oil heater from overheating.
  •   - Over heating will lead to rapid deterioration of the thermal oil.
  •   - If the temperature of thermal oil has reached the setting value of the control thermostat, the fuel burner or electric heating element will be shut down automatically.
• THERMAL OIL FLOW LIMITER
  •   - It is in a form of differential pressure switch installed across the oil inlet and outlet of thermal oil heater.
  •   - If the flow of the oil interrupted by any blockage found inside the oil pipe or failure of the circulating pump, the fuel burner or electric heating element will be cut off.
• THERMAL OIL HEATER CONTROL
  •   - The main parameter controlling thermal oil heater is working temperature.
  •   - The role of the operating pressure, is not so prominent because any change of pressure will not effect the working temperature of the system.
  •   - Furthermore the pressure in the system is basically the discharge pressure of the circulating pump only.
  •   - When the temperature of the oil inside the thermal oil heater has attained the upper temperature setting limiting, the heating input will be stopped but the circulating pump would run continuously.
  •   - When the temperature oil has attained the lower temperature setting, the fuel burner or electric element will again be actuated by the thermostat.
2. CIRCULATING PUMPS UNIT
3. EXPANSION TANK UNIT
  • ● One of the properties of thermal oil is that it expands when heated.
  • ● An expansion is required in order to take up the increased volume of fluid created when a heat transfer unit generates high temperature.
  • ● The expansion section is vital to the thermal fluid system.
  • ● From ambient to operating temperature, the thermal fluid in the system will typically expand in the range of 25% to 50%, and a vessel capable of handling this expansion is mandatory.
  • ● Safety valve, its function is to prevent the thermal oil heater from operating at a pressure exceeding the maximum permissible working pressure.
  • ● Low oil level cut off in expansion tank, any loss of thermal oil due to leakage can be indicated by this device which will shut off the fuel burner or electric heating element.
  • ● The leakage is usually found on tube, shaft seals of circulating pump, pipeline and flanges of the system.
  • ● If the leakage from the fuel burner happens inside the furnace, explosion may occur.
4. DRAIN TANK UNIT
  • ● Drain tank, vessel designed to contain all or part of a thermal fluid system’s volume.
  • ● A so-called drain tank serves to fill and empty the fluid content into/from a heat transfer unit and, additionally, additionally, an oxygen seal against the hot thermal oil.

LOCAL CONTROL CABINET
